Ocean Thermal Energy harnesses the natural temperature difference between warm surface water and cold deep seawater to generate clean, renewable electricity. This innovative technology offers a sustainable way to utilize the ocean’s vast thermal gradient for continuous power production, making it a promising solution for the future of energy.
Table of Contents
- Understanding Ocean Thermal Energy: Harnessing the Ocean’s Thermal Gradient
- The Science Behind Ocean Thermal Energy
- Ocean Thermal Energy Conversion (OTEC) Technologies
- Potential Applications of Ocean Thermal Energy
- Environmental and Economic Considerations
- Global Status and Future Prospects
- Conclusion
Understanding Ocean Thermal Energy: Harnessing the Ocean’s Thermal Gradient
Ocean Thermal Energy (OTE), also known as Ocean Thermal Energy Conversion (OTEC), is a renewable energy technology that exploits the temperature difference between warm surface seawater and cold deep seawater to generate electricity. This method leverages the vast thermal energy stored in the ocean’s layers, presenting a promising solution for sustainable power production. This article provides an in-depth examination of ocean thermal energy, covering its principles, technological implementations, environmental impact, and future prospects.
The Science Behind Ocean Thermal Energy
The Ocean Thermal Gradient

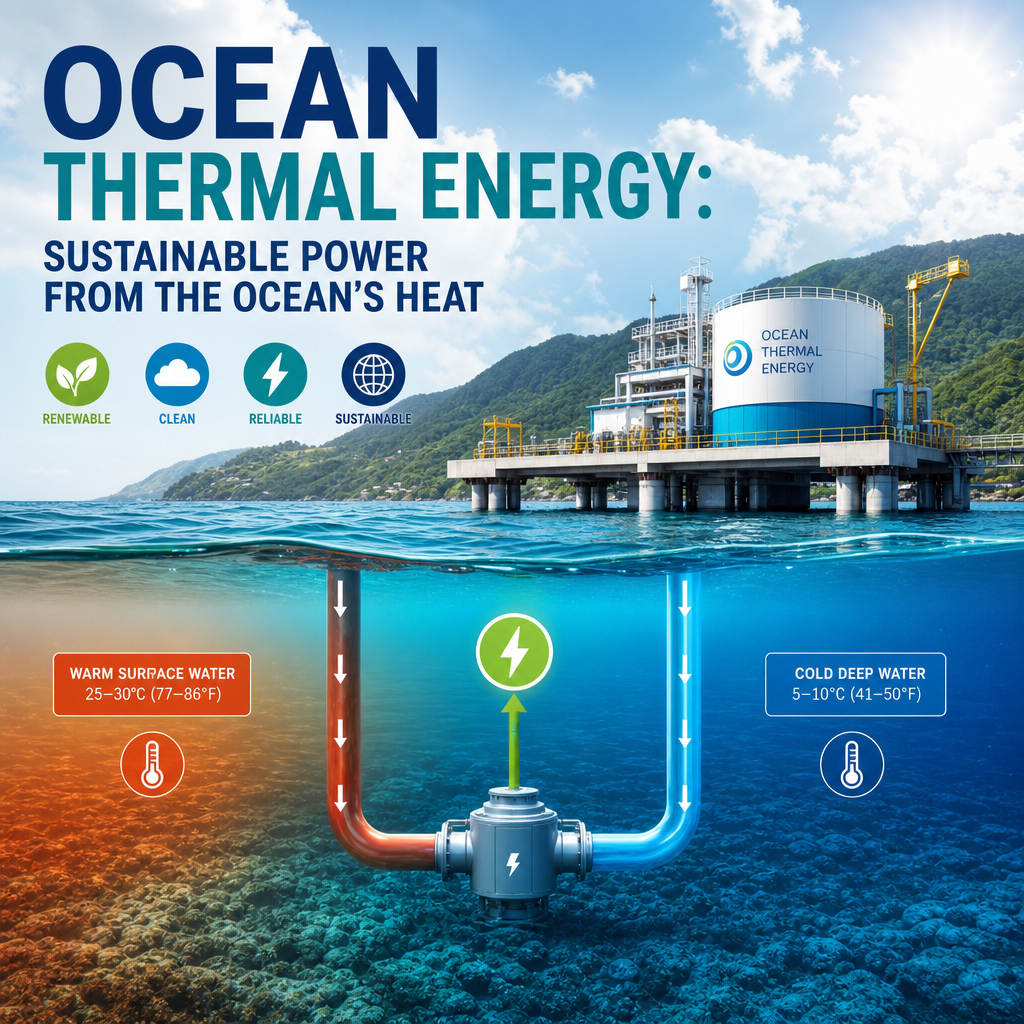

The ocean absorbs solar energy, warming the surface waters to temperatures significantly higher than those found in deeper layers. Typically, in tropical regions, surface seawater can be around 25°C to 30°C, while deep ocean water, located roughly 1,000 meters below the surface, remains around 5°C. This temperature difference, or thermal gradient, forms the basis for ocean thermal energy conversion.
The thermal gradient is crucial because it allows the operation of a heat engine cycle—a system that converts thermal energy into mechanical or electrical energy. The efficiency of such an engine depends on the temperature difference between the heat source and sink; even though ocean temperature differences are relatively small compared to conventional power plants, the renewable and continuous nature of this resource makes OTE an attractive option.
Thermodynamics and Energy Conversion
Ocean thermal energy systems commonly utilize a thermodynamic cycle to convert heat energy into electricity. The most prevalent is the Rankine cycle, modified for low-temperature heat sources. Warm surface water acts as the heat source, vaporizing a working fluid with a low boiling point (such as ammonia or refrigerants) in a closed-loop system. The vapor expands, driving turbines connected to electric generators. Cold seawater from the ocean depths condenses the vapor back to liquid, enabling the cycle to repeat.
Key concepts related to the thermodynamics of ocean thermal energy include:
- Carnot Efficiency: The theoretical maximum efficiency of a heat engine operating between two temperatures. Due to the relatively small thermal gradient (often less than 20°C difference), OTE systems have theoretical efficiencies around 6-7%, lower than fossil-fuel-based plants.
- Working Fluids: Fluids with low boiling points are essential because the temperature gradient limits how much thermal energy can be extracted. Commonly used fluids include ammonia, which has favorable thermodynamic properties for OTEC applications.
Ocean Thermal Energy Conversion (OTEC) Technologies
Three primary types of OTEC systems represent the technological approaches to harnessing ocean thermal energy:
Closed-Cycle OTEC Systems
In closed-cycle systems, a closed loop circulates a working fluid such as ammonia, which evaporates when heated by warm surface seawater. The expanding vapor drives a turbine-generator to produce electricity. Cold seawater from the deep ocean then condenses the vapor back into liquid. This design limits the impact on surrounding seawater chemistry and minimizes direct contact between working fluids and the environment.
Open-Cycle OTEC Systems
Open-cycle OTEC uses warm surface seawater as the working fluid directly. Warm seawater is placed in a low-pressure chamber where it partially evaporates due to reduced pressure. The resulting steam drives a turbine, and then it is condensed using cold seawater from the deep ocean. Open-cycle systems produce desalinated freshwater as a valuable by-product due to the initial evaporation process.
Hybrid OTEC Systems
Hybrid systems combine features of both closed and open cycles to optimize efficiency and by-product production, including the generation of desalinated freshwater alongside electrical power.
Potential Applications of Ocean Thermal Energy
Electricity Generation
The principal application of ocean thermal energy is in generating baseload electricity in tropical coastal regions where the ocean thermal gradient is sufficient. Unlike intermittent renewable sources such as solar and wind, ocean thermal energy offers a stable and continuous energy supply.
Desalination
Open-cycle and hybrid OTEC systems produce fresh water by evaporating warm seawater and condensing the steam, offering a sustainable desalination method. This capability is particularly important for island nations and remote coastal areas with limited freshwater resources.
Aquaculture and Marine Cooling
The cold deep seawater used in OTEC systems can be repurposed for aquaculture by providing nutrient-rich waters, enhancing fish farming. Additionally, deep seawater can be used for air conditioning and cooling industrial processes, reducing energy consumption.
Environmental and Economic Considerations
Environmental Impact
Ocean thermal energy is generally considered environmentally friendly compared to fossil fuel alternatives. However, some concerns include:
- Marine Ecosystem Disturbance: Large-volume seawater intake and discharge can disrupt local marine ecosystems, affecting nutrient cycles and aquatic life.
- Chemical Leakage: Potential leaks of working fluids (e.g., ammonia) could pose toxicity risks, although closed-cycle designs significantly reduce this hazard.
- Thermal Pollution: Discharged water may have different temperatures or chemical compositions, potentially affecting local marine habitats.
Proper environmental impact assessments and system designs are essential to mitigate these risks.
Economic Challenges and Potential
Currently, the high capital cost and infrastructure complexity limit widespread OTEC deployment. Challenges include the construction of long and durable cold-water pipes reaching depths of 1,000 meters or more and the integration of OTEC plants into local energy grids.
However, with advances in technology, scale economies, and increased demand for renewable baseload power, OTEC systems may become economically viable, particularly for island nations and coastal regions with limited energy options.
Global Status and Future Prospects
Current Developments
Pilot and demonstration OTEC plants have been operational since the late 20th century, with countries such as Japan, the United States, India, and various island nations leading research and development. These projects have tested different system configurations, materials, and operational methodologies.
Future Innovations
Key areas for future improvement include:
- Improved Materials: Developing corrosion-resistant and durable materials for deep-sea components and cold-water pipes.
- Enhanced Thermodynamic Cycles: Exploring working fluids and cycle designs that can increase energy-conversion efficiency despite the low thermal gradient.
- Hybrid Systems Integration: Combining OTEC with other renewables and desalination technologies to maximize utility.
Climate Change Mitigation Role
As the world seeks sustainable, low-carbon energy sources, ocean thermal energy could become a critical component of the renewable energy mix, especially in tropical coastal regions. Its capacity to produce steady baseload power complements intermittent renewables, helping to stabilize energy grids and reduce reliance on fossil fuels.
Conclusion
Ocean thermal energy represents a technically feasible and environmentally sustainable renewable energy resource that harnesses the natural thermal gradient of the ocean. Although deployment challenges remain—primarily economic and infrastructural—ongoing research and technological innovation continue to advance the viability of OTEC systems. With increasing emphasis on combating climate change and ensuring energy security in coastal and island regions, ocean thermal energy stands out as a promising contributor to the global renewable energy portfolio.
